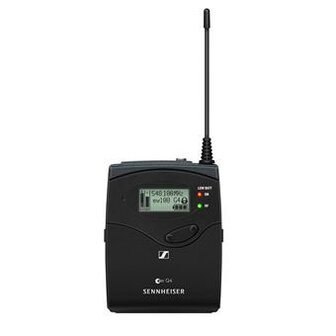

Sennheiser EK 100 G4-A (BE)

Powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.



• Powerful camera receiver, easily mounted on any kind of camera

• Excellent sound and construction quality

• Easy to use and fast setup time

• Powerful and reliable wireless transmission

• Range: up to 100 meters / 330 feet

• Up to 8 hours of operation time





• Modulation: Wideband FM
• Frequency Band: A: (516 to 558 MHz)

• Receiving Frequency: Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• Switching Bandwidth: Up to 42 MHz

• Nominal/Peak Deviation: ±24 kHz / ±48 kHz

• Principle of Operation: Adaptive diversity

• Sensitivity: <, 1.6 µV for 52 dBA eff S/N (with HDX, peak deviation)
• Adjacent Channel Selectivity: = 65 dB

• Intermodulation Attenuation: Typically = 65 dB

• Blocking: = 70 dB

• Squelch: Low: 5 dBµV

• Middle: 15 dBµV

• High: 25 dBµV

• Pilot Tone Squelch: Can be switched off

• Antenna Inputs: 2 x BNC sockets

• Compander: Sennheiser HDX

• Signal to Noise Ratio: = 110 dBA (1 mV, peak deviation)

• Total Harmonic Distortion (THD): = 0.9%

• Maximum AF Output Voltage: 1/8" /3.5 mm Jack: +12 dBu (mono, unbalanced)

• Output Level Range: 42 dB, adjustable in steps of 6 dB

• Temperature Range: 14 to 131°F (-10 to 55°C)

• Power Supply: 2 x AA 1.5 V batteries, or BA 2015 accupack

• Nominal Voltage: 3 V battery / 2.4 V rechargeable battery

• Current Consumption: Nominal Voltage: Typical 180 mA

• With Receiver Switched Off: = 25 µA
• Operating Time: Typically 8 hours

• Dimensions (L x W x H): 3.2 x 2.5 x 0.9" / 82 x 64 x 24 mm

• Weight: 5.6 oz / 160 g
