Rode Filmmaker Kit

RØDELink represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.





• Transmission type: 2.4GHz Fixed Frequency Agile System
• System dynamic range: 112dB
• Range (distance): Up To 100m
• Frequency range: 35Hz - 22kHz
• Maximum output level: 1v Rms (2.8v P-p)
• Max input signal level: 1v Rms (2.8v P-p)
• Max latency: 4ms

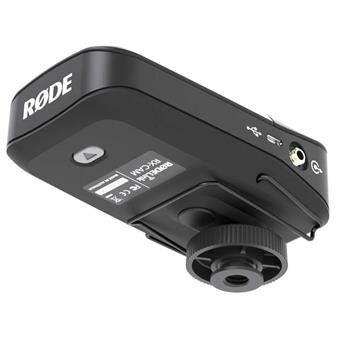

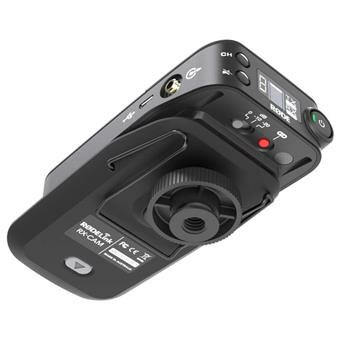

• Receiver: (RX-CAM)
• Power source: 2 X AA Battery Or MicroUSB
• Antenna: Internal
• Output connection: 3.5mm TRS Locking Jack Socket - Dual Mono
• Output impedance: 300O
• Dimensions: 111mm X 65mm X 52mm
• Weight: 190gm

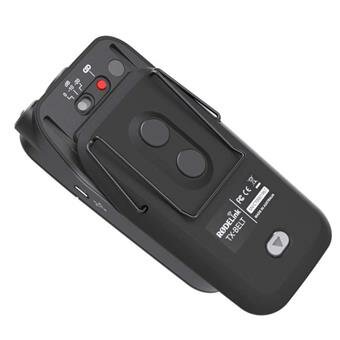

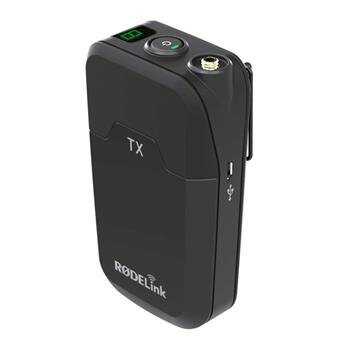

Transmitter (TX-BELT)
• Power source: 2 X AA Battery Or MicroUSB
• Antenna: Internal
• Input connection: 3.5mm TRS Locking Jack Socket
• Input impedance: 10kO
• Dimensions: 111mm X 65mm X 40mm
• Weight: 190gm

Lavalier
• Acoustic Principle: Permanently Polarized
• Active Electronics: JFET impedance converter
• Capsule: 0.10"
• Address Type: End
• Frequency Range: 60Hz - 18kHz
• Output Impedance: 3000O
• Maximum SPL: 110dB SPL (@ 1kHz, 1% THD into 1KO load)
• Maximum Output Level: 189.0mV
• Sensitivity: -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise Level: (A-weighted) 25dB-A
• Weight: 1.00gm
• Dimensions: 12.00mmH x 4.50mmW x 4.50mmD
