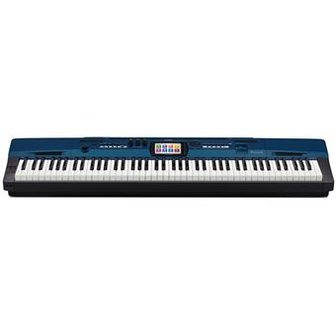

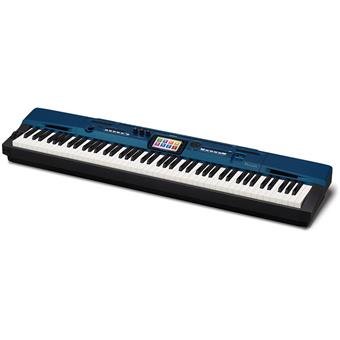

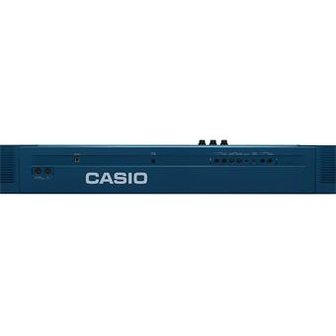

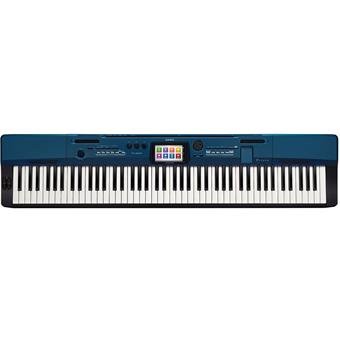

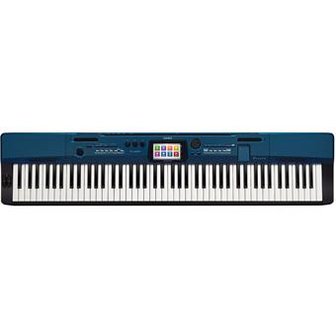

Casio Privia PX-560M

Voor ambitieuze muzikanten biedt de PX-560M indrukwekkende functies zoals 256-stemmige polyfonie, 650 Preset Sounds, 400 User Sounds en 20 programmeerbare Insert-effecten. De HEX-Layer-functie van de PRIVIA Pro PX-5S Stagepiano maakt creatieve klankkleuren mogelijk. De PX-560M beschikt bovendien over een controller voor pitch en modulatie, drie draaicontrollers voor realtime besturing, een voetpedaal en een ingang voor een Expression-pedaal.

• 5,3" LCD-touchpaneel (in kleur)
• Meerdimensionale AiR-klankuitrusting (256-stemmig polyfoon)
• 650 klankkleuren
• Automatische begeleiding met 220 ritmes
• Gescaleerde hamermechaniek met 3 sensoren
• Hex-layer
• Pitch- en modulatiewiel, 3 draaicontrollers
• 4-bands equalizer
• MIDI- en audiorecorder
• USB-interface (pc)
• 2 luidsprekers van 8 W
• Optionele accessoires: standaard CS-67P / 3-pedaleneenheid SP-33







Keyboard
• Number of keys: 88
• Key surface finish: Simulated ebony and ivory keys
• Velocity resolution: 16.256 maximum
• Layer/Split: Yes/Yes
• Duet: 4 octaves (-2 to 0 to +2)
• Transpose: 2 octaves (-12 to 0 to +12)
• Octave shift: 4 octaves (-2 to 0 to +2)

Sound source
• Number of tones: 650
• Polyphony (max.): 256 tones
• Touch response: 3 sensitivity levels, off
• Tuning: 415,5 Hz to 440,0 Hz to 465,9 Hz (0,1-Hz units)
• Temperament: 17 types

Display
• Functions: 5,3 inch LCD touch panel

Acoustic Simulator
• Linear Morphing, Hex-Layer: Yes
• Damper Resonance: Yes (16 levels)
• Hammer response: Yes (8 levels)
• String resonance: Yes (16 levels)

Effects
• Types
Hall: 17 types
Chorus: 16 types
Delay: 6 types
DSP: 20 types
Master EQ: bands parametric

Auto Accompaniment
• Data items
Presets: 220
User: 30

Music Preset
• Data items
Presets: 305
User: 100

Demo Song
Number of songs: 6

MIDI Recorder
• Functions
Real-time recording: Yes
Playback: Yes

Songs
• Number of songs: 100
• Number of tracks: 17
• Capacity: Up to appr. 50.000 notes per song
• Recorded data protection: Built-in flash memory
• MIDI recorder volume level: Adjustable

Audio Recorder
• Functions
Real-time recording: Yes, USB flash drive
Playback: Yes, USB flash drive
• Songs
Number of songs: 100
Length: Approximately 74 minutes maximum recording per file
• Audiorecorder volume level: Adjustable

Registration
• 96 (4 setups x 24 banks)

Metronome
• Beats: 0 to 9
• Tempo range: 20 to 255

Pedal
• Damper (with half-pedal operation): Yes
• Soft: Yes
• Sostenuto: Yes

Other functions
• Dedicated piano tone buttons: Yes
• Balance adjustment: Yes
• Setting backup: Yes
• Operation lock: Yes

MIDI
• 16-channel multi-timbre receive

Pitch Bend Wheels
• Pitch Bend Range: 0 to 24 semitones

Modulation Wheels
• Yes

USB Flash Drive
• Capacity: 32 GB

Inputs/Outputs
• Phones: Stereo mini jacks x 2
• Pedal: standard jacks x 2
• Line IN: (L/MONO, R) standard jacks x 2
• Line OUT: (L/MONO, R) standard jacks x 2
• Audio-Input: Stereo mini jack
• USB port: Type B
• USB flash drive port: Type A
• Optional pedal connector for SP-33: Yes

Speakers
• Size: 12 cm x 2 + 5 cm x 2
• Output: 8 W + 8 W

Power Requirements
• AC adaptor: AD-A12150LW
• Auto power off: Appr. 4 hours after last operation

Power Consumption
• 12 V - 10 W

Dimensions W x D x H
w/o stand and music stand: 132.2 x 29.3 x 14.7 cm

Weight
w/o stand and music stand: approximately 12 kg

Accessories
included: Pedal (SP-3), AC adaptor (AD-A12150LW), music stand
